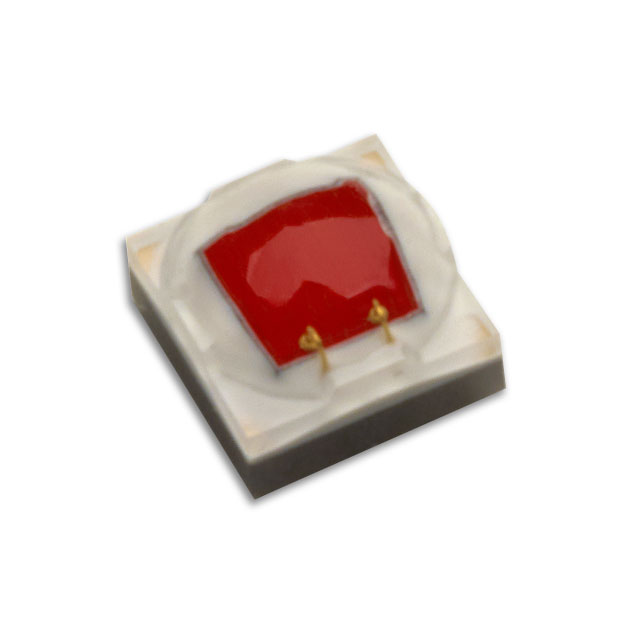

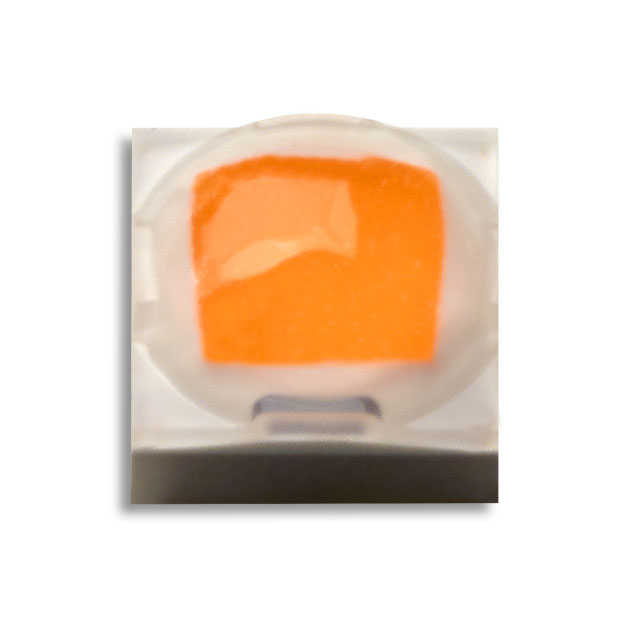

LUXEON C Color 系列是具有先進光學性能的彩光和白光 LED 系列。LUXEON C Color 系列對所有顏色采用同一焦距，可為二次光學元件實現一致的輻射模式，最大限度地提高光效率，從而實現無瑕的顏色混合。該系列采用低穹頂設計，可有效地減小光源的尺寸，同時改善光萃取。LUXEON C Color 系列可實現順暢的顏色混合及最佳的照明效果，是建筑、應急車輛照明和歷史文化照明應用的最佳 LED 解決方案。
LUXEON C Colors product performance at 350mA,Tj=85°C.
Note: Royal Blue measured in peak wavelength and radiometric power.
| COLOR |
DOMINANT OR PEAK WAVELENGTH (nm) |
LUMINOUS FLUX (lm) OR RADIOMETRIC POWER (mW) |
PART NUMBER | ||
|---|---|---|---|---|---|
| MINIMUM | MAXIMUM | MINIMUM | TYPICAL | ||
| Far Red | 720 | 750 | 190 | 230 | L1C1-FRD1000000000 |
| Deep Red | 655 | 675 | 280 | 315 | L1C1-DRD1000000000 |
| Red | 624 | 634 | 35 | 49 | L1C1-RED1000000000 |
| Red-Orange | 614 | 624 | 45 | 60 | L1C1-RNG1000000000 |
| Amber | 585 | 600 | 20 | 30 | L1C1-AMB1000000000 |
| PC Amber | - | - | 80 | 94 | L1C1-PCA1000000000 |
| Mint | - | - | 140 | 152 | L1C1-MNT1000000000 |
| Lime | - | - | 125 | 135 | L1C1-LME1000000000 |
| Green | 520 | 540 | 90 | 115 | L1C1-GRN1000000000 |
| Cyan | 490 | 510 | 65 | 90 | L1C1-CYN1000000000 |
| Blue | 465 | 485 | 25 | 41 | L1C1-BLU1000000000 |
| Royal Blue | 440 | 460 | 480 | 532 | L1C1-RYL1000000000 |

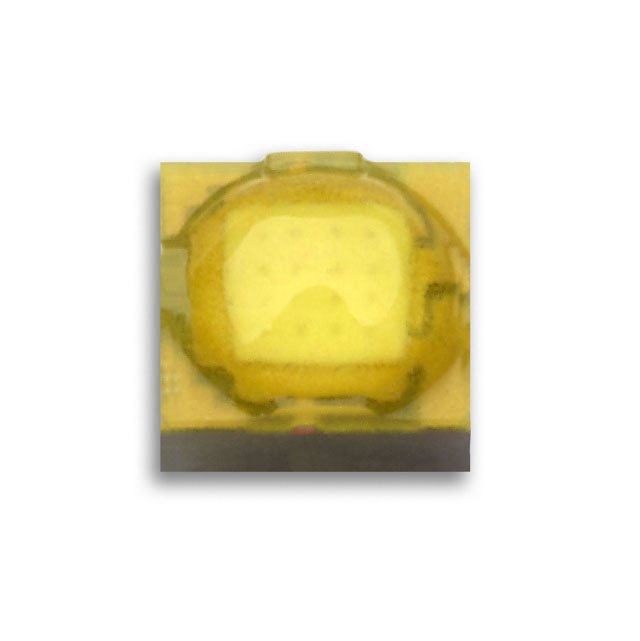

LUXEON C White product performance at 350mA,Tj=85°C.
| NOMINAL CCT | MINIMUM CRI | LUMINOUS FLUX (lm) |
TYPICAL LUMINOUS EFFICACY (lm/W) |
PART NUMBER | |
|---|---|---|---|---|---|
| MINIMUM | TYPICAL | ||||
| 4000K | 70 | 100 | 116 | 121 | L1C1-4070000000000 |
| 5000K | 70 | 100 | 117 | 122 | L1C1-5070000000000 |
| 5700K | 70 | 100 | 118 | 124 | L1C1-5770000000000 |
| 6500K | 70 | 100 | 119 | 124 | L1C1-6570000000000 |
| 2700K | 80 | 90 | 94 | 98 | L1C1-2780000000000 |
| 3000K | 80 | 90 | 102 | 106 | L1C1-3080000000000 |
| 4000K | 80 | 100 | 113 | 117 | L1C1-4080000000000 |
| 5700K | 90 | 80 | 93 | 94 | L1C1-5790000000000 |
 |
|
